Cable routing parts built for the installation
Installation & Design Considerations
Cable quantity and size
Conductor count, fill, bundle size, separation, heat, and future capacity.
Routing geometry
Straight runs, elbows, tees, reducers, offsets, entry points, bend radius, and pull access.
Access
Lay-in or pull-through approach, cover type, hinge or fastener method, removable sections, and maintenance clearance.
Protection
Indoor or outdoor conditions, dust, water, corrosion, gasket path, drain provisions, and coating system.
Interfaces
Flange dimensions, bolt patterns, adapters, gland plates, knockouts, conduit or cable entry, and equipment connection points.
Mounting and support
Brackets, span, load, vibration, field adjustment, and installation sequence.
Grounding and bonding
Continuity, hardware, bonding points, and customer grounding requirements.
Manufacturing
Bend sequence, seam location, cover fit, tolerance stack-up, distortion, finish allowance, and repeatable fitting compatibility.

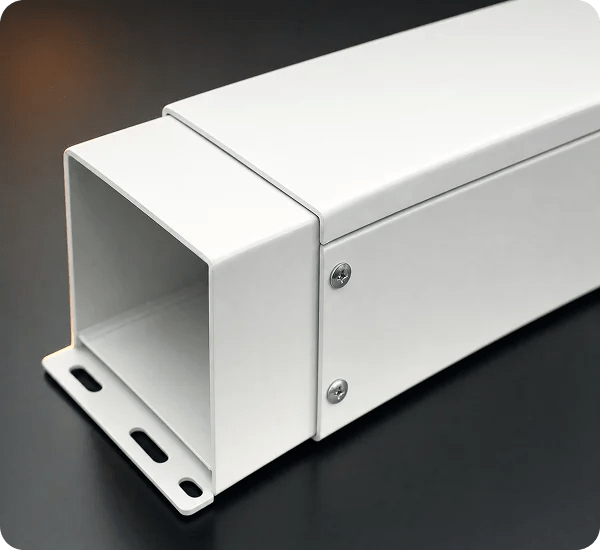

Cable Routing Components
- Lay-in wireway sections and covers.
- Elbows, tees, crosses, reducers, offsets, and adapters.
- Cable troughs, gland plates, entry boxes, and transition pieces.
- Mounting brackets, dividers, support channels, and protective covers.
- Custom cable routing parts integrated into an OEM product.

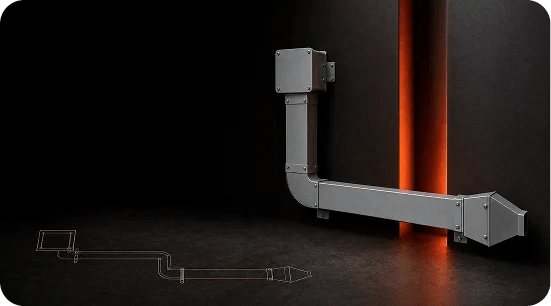

Need Custom Cable Routing Parts?
