Built around your controls
Technical Design Considerations

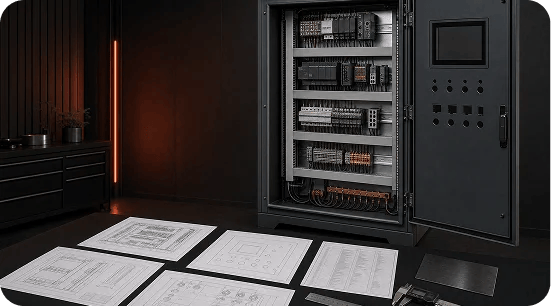

Component layout
Terminal blocks, relays, HMIs, PLCs, power supplies, meters, disconnects, and customer-specified devices.
Mounting system
Panels, DIN rails, studs, brackets, wireway, grounding bars, and removable subassemblies.
Operator interface
HMI/display cutouts, push buttons, selector switches, indicators, labels, viewing height, and door stiffness.
Cable and wire routing
Gland plates, conduit entries, segregation, bend radius, service loops, terminal access, and wireway fill assumptions supplied by the design authority.
Thermal management
Heat load, component spacing, natural ventilation, fan/filter provisions, heat exchangers or cooling cutouts, and ambient conditions.
Mounting and service
Wall/floor configuration, door swing, locks, interlocks, removable panels, lifting, anchoring, and maintenance access.
Environmental target
Type 1 or Type 3R project requirements, gasket path, drainage, corrosion exposure, finish, and outdoor solar/weather considerations.
Manufacturing control
Cutout coordinates, panel flatness, hardware, grounding/bonding points, coating allowance, labeling provisions, and first-article inspection.
RFQ Inputs
- Component layout, device datasheets, HMI/operator cutout drawing, mounting method, cable-entry plan, and thermal information.
- Target Type 1 or Type 3R requirement, material/finish, quantity, and inspection or documentation needs.
Send the Control Layout
Upload the component layout, HMI cutouts, cable-entry plan, environment, and quantity.
Send the Control Layout
